Butt Welding Machines

PolyBasic160 LF
(40mm,160mm,0",0")

Weldpoly160 LF
(50mm,160mm,0",0")

Weldpoly250 LF
(50mm,250mm,0",0")

Weldpoly250 HF
(63mm,250mm,0",0")

Weldpoly250 CNC LF
(90mm,250mm,0",0")

Weldpoly315 LF
(90mm,315mm,0",0")

Weldpoly315 HF
(90mm,315mm,0",0")

Weldpoly315 CNC LF
(90mm,315mm,0",0")

Weldpoly355 HF
(110mm,355mm,0",0")

Weldpoly450 LF
(200mm,450mm,0",0")

Weldpoly450 HF
(200mm,450mm,0",0")

Weldpoly630 LF
(315mm,630mm,0",0")

Weldpoly800 LF
(450mm,800mm,0",0")

Weldpoly800 Hydra HF
(450mm,800mm,0",0")

Weldpoly1000 LF
(500mm,1000mm,0",0")

Weldpoly1000 Hydra LF
(500mm,1000mm,0",0")

Weldpoly1000 Hydra HF
(500mm,1000mm,0",0")

Weldpoly1200 LF
(630mm,1200mm,0",0")

Weldpoly1200 Hydra LF
(630mm,1200mm,0",0")

Weldpoly1200 Hydra HF
(630mm,1200mm,0",0")

Weldpoly1600 Hydra LF
(900mm,1600mm,0",0")

Weldpoly1600 Trench HF
(1000mm,1600mm,0",0")

Weldpoly1600 Hydra HF
(900mm,1600mm,0",0")

Weldpoly2000 Trench LF
(1400mm,2000mm,0",0")

Weldpoly2000 Hydra LF
(1400mm,2000mm,0",0")

Weldpoly2500 Hydra LF
(1600mm,2500mm,0",0")

Weldpoly2800 Hydra LF
(1800mm,2800mm,63",106")

Weldpoly8 HF
(0mm,0mm,3",8")

Weldpoly10 HF
(0mm,0mm,3",10")

Weldpoly14 HF
(0mm,0mm,4",14")

Weldpoly16 HF
(0mm,0mm,8",16")

Weldpoly48 Hydra HF
(0mm,0mm,24",48")

Weldpoly54 HF
(0mm,0mm,30",54")

Weldpoly63 Trench HF
(0mm,0mm,36",63")

Weldpoly63 HF
(0mm,0mm,36",63")

Weldpoly63 Hydra HF
(0mm,0mm,36",63")

Weldpoly80 Hydra LF
(0mm,0mm,48",80")

Weldpoly100 Hydra LF
(0mm,0mm,63",100")

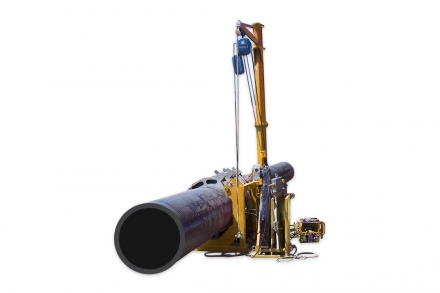

Weldpoly800 Hydra HF

Weldpoly800 Hydra HF hydraulically operated butt-welding machine suitable for PE and PP pipes and fittings from 450 to 800mm OD.
Provides welding of pipes and fittings from 450 to 800mm according to ISO 21307 SHP (& optional ASTM)
The machine is the result of more than 60 consecutive years of direct involvement in the PE pipe industry, providing premium equipment for welding both on the work-site and in the factory. The use of virgin Aluminium castings and German hydraulic seals allows for lower weight without compromising strength and performance. Operation is via our portable wired console.
This machine comes with high quality hinged steel main clamps & hydraulic open/close & locking. Includes Remote Monitoring System for on-line assistance; PLC control of temperature; time and pressure; on-board data logging and the ability to weld between clamps 2 & 3 or 3 & 4 making this an exceptionally versatile machine.

Technical Specifications

Welding range 450 to 800mm: SDR 9 (PN20) to SDR 26
Complete and ready to weld
Hydraulic open/close/locking of main clamps
Tool box including tools, bolts etc.
German hydraulic seals
Operation via our portable wired console
Please note technical specifications of Weldpoly machines may change without notice
