PolyWorkshop10 LF

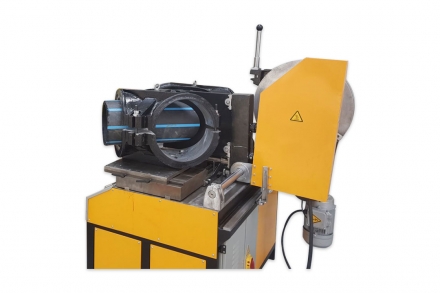

Weldpoly PolyWorkshop10 butt fusion machine for the production of HDPE and PP pipe fittings. Options includes clamps required for the production of bends, tees and crosses from 3" to 10:" IPS, 3" to 10" 45' & 60' branch tees and 3" to 10" true-wyes.
Welding is performed at variable force.

Technical Specifications

  • Produces bends, tees and crosses from 3" to 10" IPS
  • Main clamps for bends, tees and crosses are manual open/close/locking
  • Optional clamps allow production of 45' & 60' branch tees, and true-wyes
  • Standard machine welds at low force. Welding to ASTM F 2620 - 13 is an option at the time of purchase.
  • Designed for use with PE pressure pipe to DR 7
  • Power supply 220V 60Hz 3 phase
  • Specifications subject to change without notice. Please confirm at time of order confirmation.
